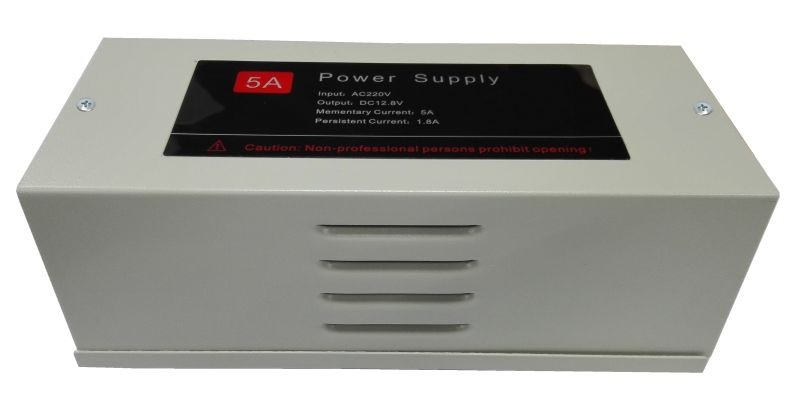

Access Control Power Supply

Model No.: CR-3390T

Features:

5A Full voltage regulator

NC/NO output to control various types of electric locks.

Built-in electric circuit to protect electric lock inductance reverse current, reduce the load of access controller.

Built-in unlock time adjustable knob, the adjustable range is 0-10s.

PUSH button can be connected to open signal, CONTROL button can be connected to ±5V~±12V electronic signal.

Stable voltage for lock and access controller.

Setting automatic protection function,built-in fuse(no charging circuit).

Product Parameters:

AC Input: 220VAC, 50Hz

DC Output: 12.8VDC,Instantaneous current:5A, Persistent current: 1.8A

Working temperature: -20℃~60C℃

Working humidity: ≤90%RH

Dimension: 185mm*78mm*64mm

Weight: 1.42kg

Package: 20units/ctn
