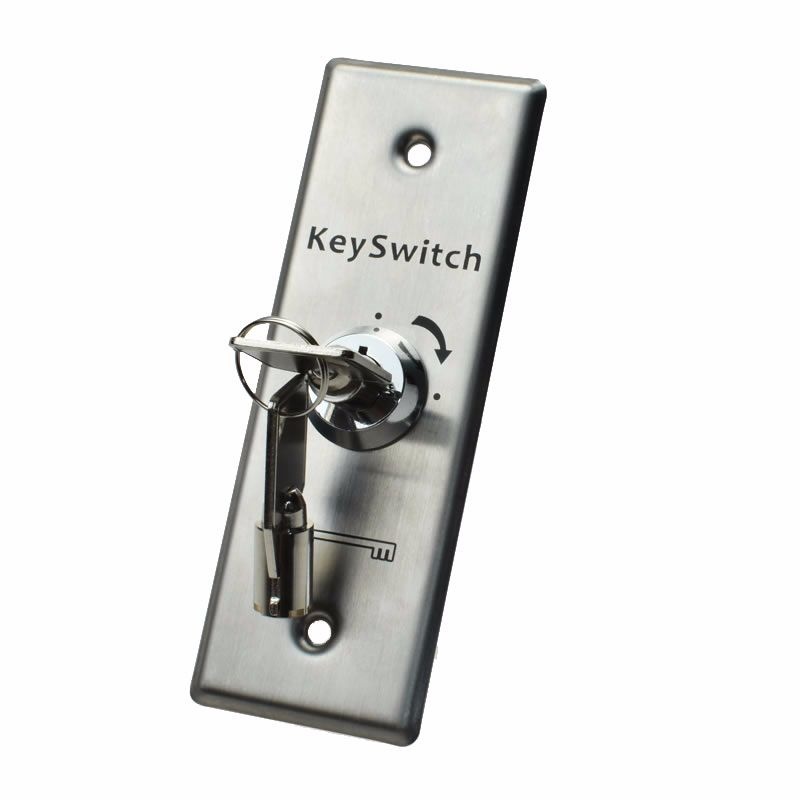

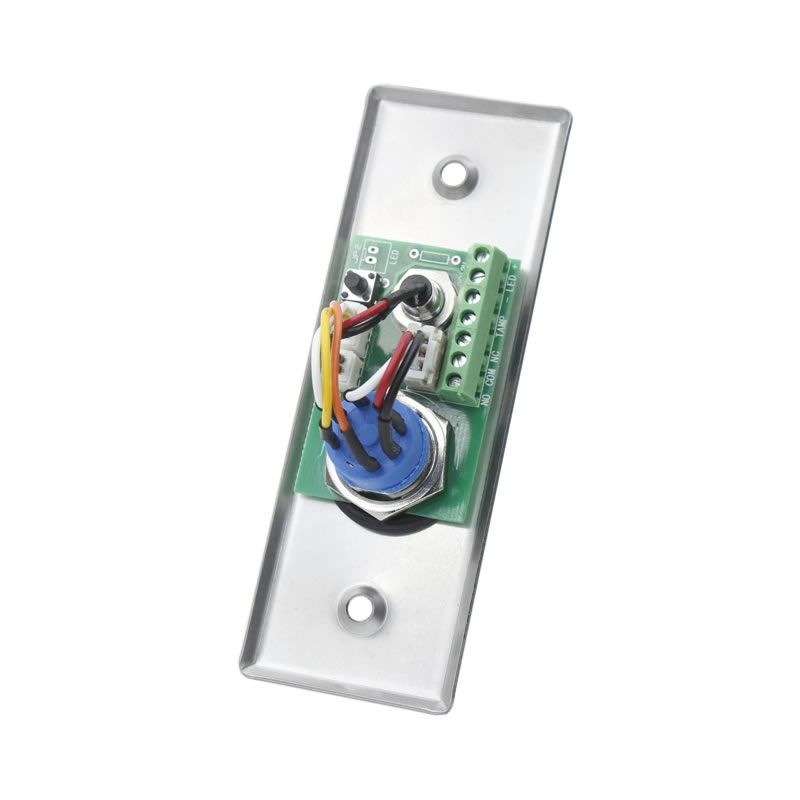

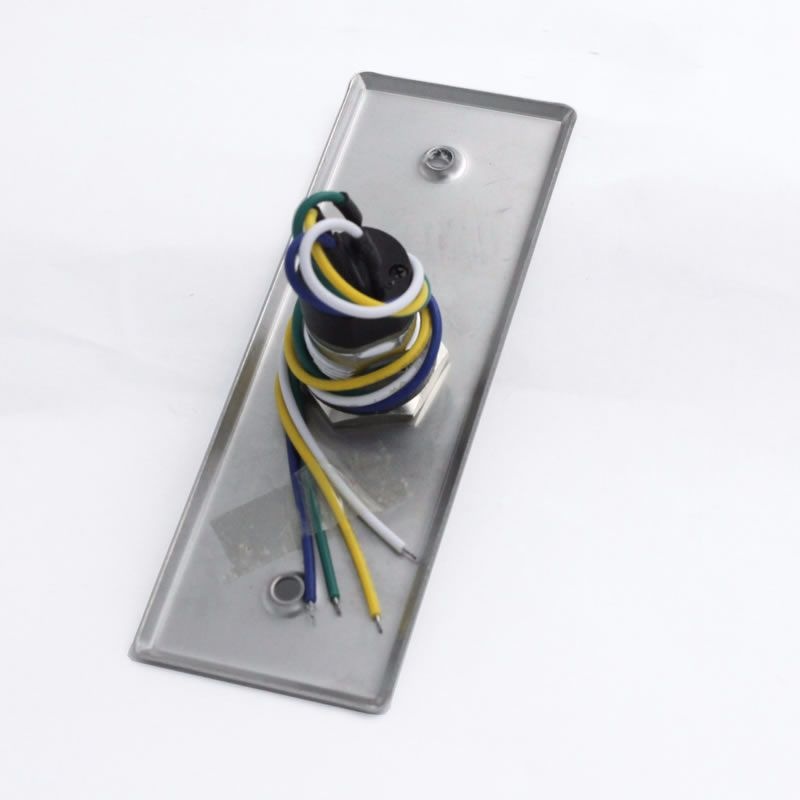

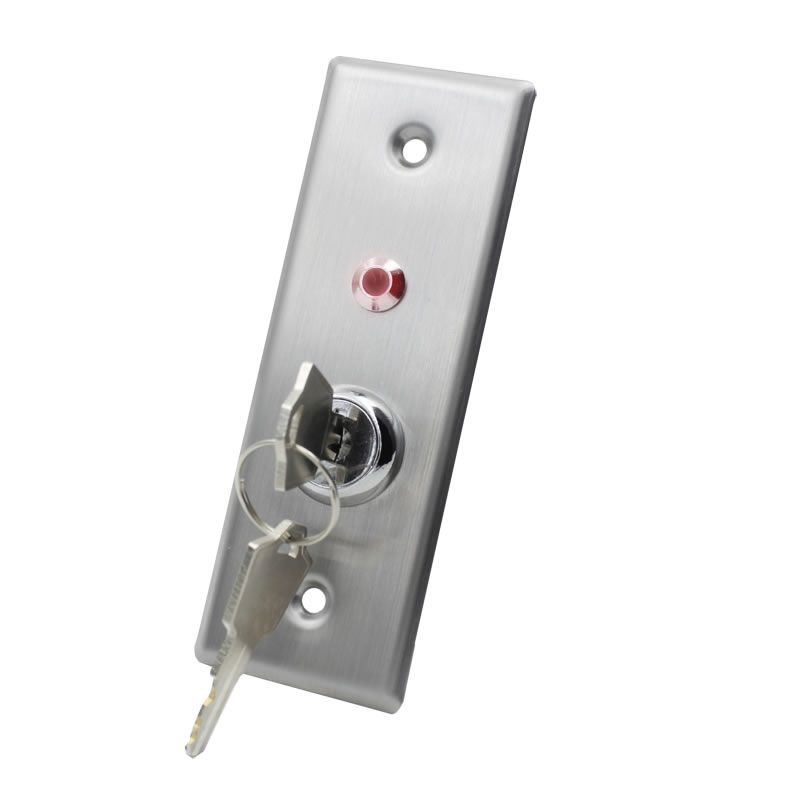

Strip Metal Key Switch



Model No.: CR-3563KS

Features:

Key switch button, it casts by 304 stainless steel with drawing panel processing. It is elegant style with long time usage.

Parameter:

Standard Structure: stainless steel panel, steel button

Panel Material: 304 stainless steel, wire drawing finished

Working voltage: DC12V

Working current: ≤100mA

Output Contact: NO/NC/COM

Material: stainless steel

Installation: conceal install

Working temperature: 10~+55℃(14-131F)

Working humidity: 0~95% (non-condensing)

Mechanical Life: 500,000 tested

Net weight: 0.17kg

Dimension: 115*40*20mm

Package: 100pcs/ctn

Carton Size: 51*43*32cm
