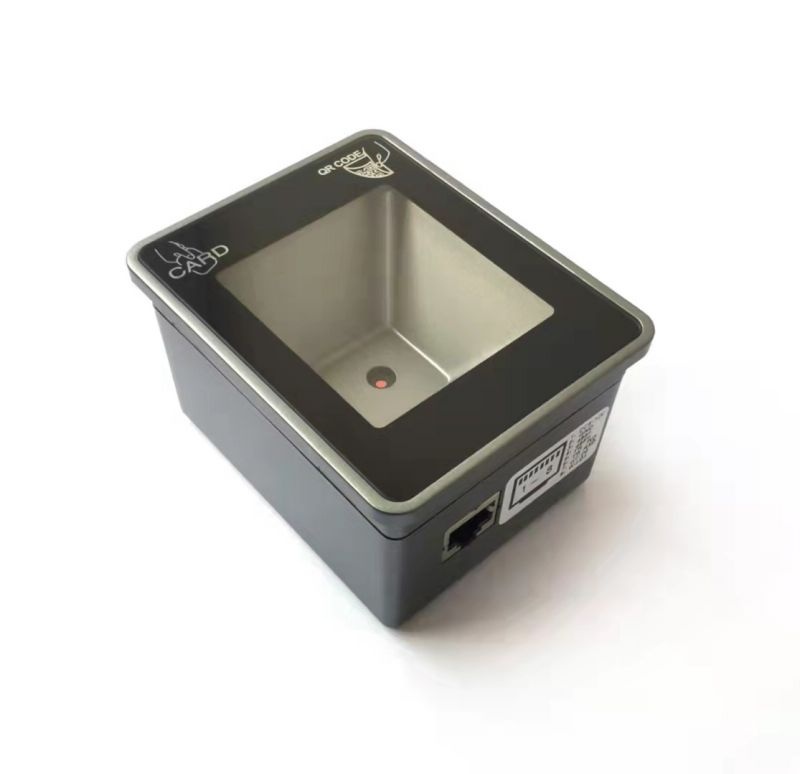

QR Code&Mifare Card Reader

Model No.: CR-3057C

1. Reading Mode: CMOS

2. Reading Code: QR Code (On screen/paper)&Mifare card

3. Reading accuracy: ≥ 5mil

4. Reading Distance: 1~8cm

5. Vertical Reading Angle: 360°

6. Camera Reading Range: Up and down\left and right 80°

7. Operating Voltage: DC 5~12V

8. Communication Interface: Standard TTL, RS485, Wiegand 26/34 (output)

9. Comes with a filling light, automatically fills light when dark

10. QR Code Recognition Time: Less than 0.5 second

11. Maximum Users: 20,000

12. Unlock Signal: 1 set of normally open contacts, 1 set of normally closed contacts

13. Signal Input: 1 set of open-door buttons

14. Applet-supported number of IC card Binding QR Code: 20,000

15. Card Reading Type: Mifare1 (IC Card), Mobile Phone NFC, Second-generation ID card serial number

16. Card Reading Distance: 3～10cm

17. Card Reading Time: ≤0.3s

18. Machine Dimensions: 92mm*74mm*55mm,

19. Successful Reading Notification: Buzzer
