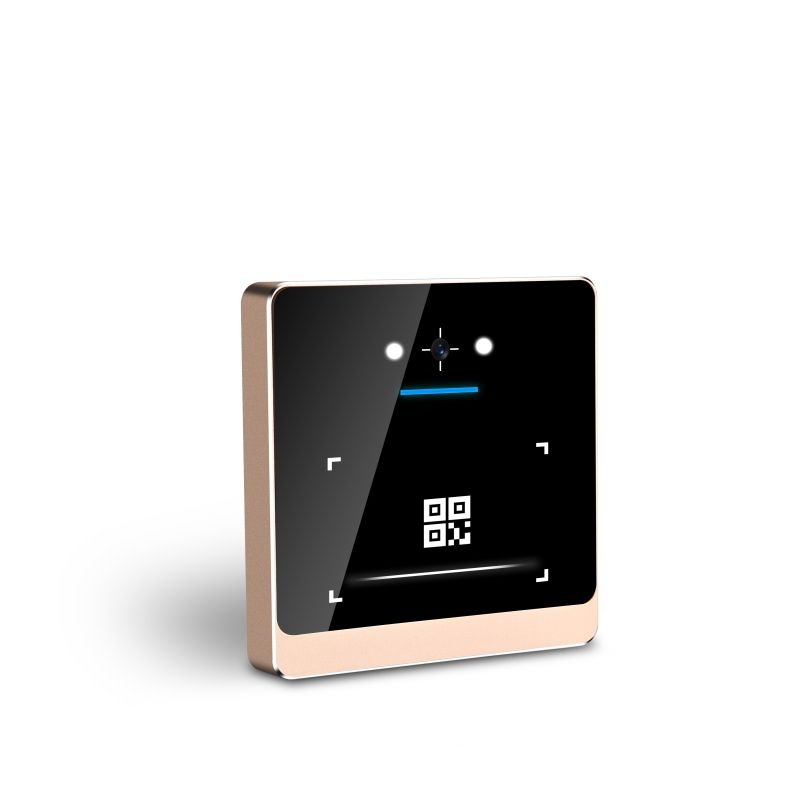

QR Code&Mifare Card Reader

Model No.: CR-3056C



Features：



◆ metal case

◆ rainproof

◆ free to laser print logo



Parameters：



Output format: WG26/34/RS485(the normal is WG26)

Recognition type: QR code&Mifare card

Vertical Reading Angle: 360°

Camera Reading Range: Up and down\left and right +-65°

Support QR code format: QR Code, Data Matrix, PDF417

Working temperature: -20℃～60℃

Environment humidity: 5%RH～95%RH

Comes with a filling light, automatically fills light when dark

QR Code Recognition Time: Less than 0.2 second

Card reading frequency: 13.56Mhz

Card reading speed: 0.2s

Card reading distance: 5-30cm

Recognition distance: 50-200mm(depends on the size of QR code)

Recognition precision: ≥7.5mil

Working voltage: DC12V

Working current: ≤500mA

Transmission distance: 50m

Dimension: 86mm*86mm*13mm

QR code support range: Wiegand 26 bits support range (0-255),(1-65535); Weigand 34 bits support range 1-4294967295; The RS485 supports range 1024 characters
